INSPECTION SOLUTION
Inspection & Vision Module
Vision-based automatic inspection solution using equipment-embedded inspection modules and industrial cameras
OVERVIEW

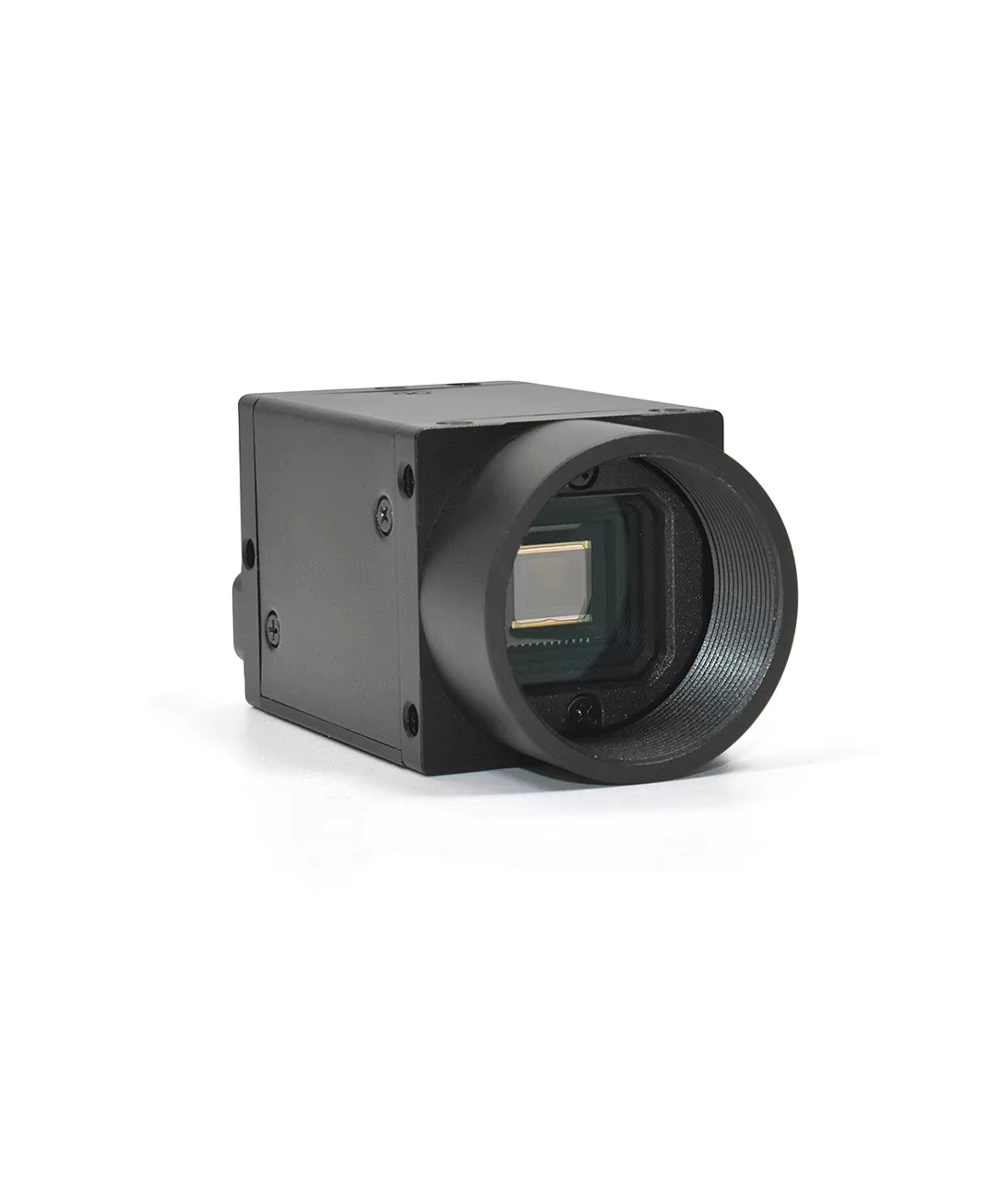

Product Overview
The Inspection & Vision Module is an inspection module that can be embedded into existing equipment. It uses high-resolution industrial cameras and vision algorithms to automatically detect product defects. It also supports connection to external equipment, significantly improving quality control efficiency on production lines.
Request Custom Fabrication
We can provide information on product details, quotations, and custom development.
FEATURES
Key Features
Vision-Based Inspection
Automatically identifies defects and anomalies through image processing algorithms
High-Resolution Camera
Equipped with industrial cameras capable of identifying minute defects
Real-Time Processing
Performs real-time inspection through high-speed image capture and analysis
Interconnectable
Supports interface connection with PLC and upper-level systems
SPECIFICATIONS
Technical Specifications
APPLICATIONS
Application Areas
Manufacturing Process
Automatic defect detection and quality control on production lines
Precision Inspection
Inspection of minute parts and surface defects
Barcode/QR
Automatic reading and verification of product identification codes
Safety Inspection
Automatic detection of packaging and appearance defects
EXPECTED BENEFITS
Expected Benefits
Discover the key benefits of deploying Microsensus vision inspection solutions, based on real customer cases.
Defect Detection Rate Improvement
Maximized precision with AI-based vision inspection
Defect detection rate (%) — before vs. after
Inspection Speed Improvement
Dramatically increased inspection throughput via automation
Hourly inspection throughput (units) — actual line measurements
Quality Cost Reduction
Reduced claim costs by preventing defect outflow
Annual quality-related cost comparison (relative index) — customer measurement
Smart Factory Transition
Foundation for data-driven process optimization
Smart factory transition index (0~100)
APPLICATION SCENARIOS
Application Scenarios
Here is how you can utilize this in these situations. Check the scenario that fits your site.
Automotive Parts Appearance Defect Detection
Automotive / Metal Parts
Visual inspection easily misses micro-scratches and dimensional defects, leading to customer claims and recall costs when defects escape
Apply high-resolution vision cameras and AI inspection algorithms to the line to build a 100% inspection system with automatic defect data recording
Defect outflow blocked, claim costs reduced, inspection speed and throughput improved
PCB Soldering Defect Auto-Detection
Electronic Parts / PCB
Manual inspection causes inspection bottlenecks, high labor costs, and limited defect detection rates, resulting in unstable shipping quality
Implement 3D vision inspection system and train AI on soldering defect patterns for automatic judgment and defect location marking
Defect detection rate dramatically improved, inspection staff reduced, shipping quality stabilized
Food Packaging Foreign Object and Label Inspection
Food / Beverage Packaging
Foreign object contamination or label misprints discovered after shipping can lead to recalls and food safety regulation violations
Use high-speed vision inspection system to simultaneously perform foreign object detection and label OCR inspection, automatically ejecting defective products
Foreign object detection rate improved, food safety regulations complied, recall risk minimized
